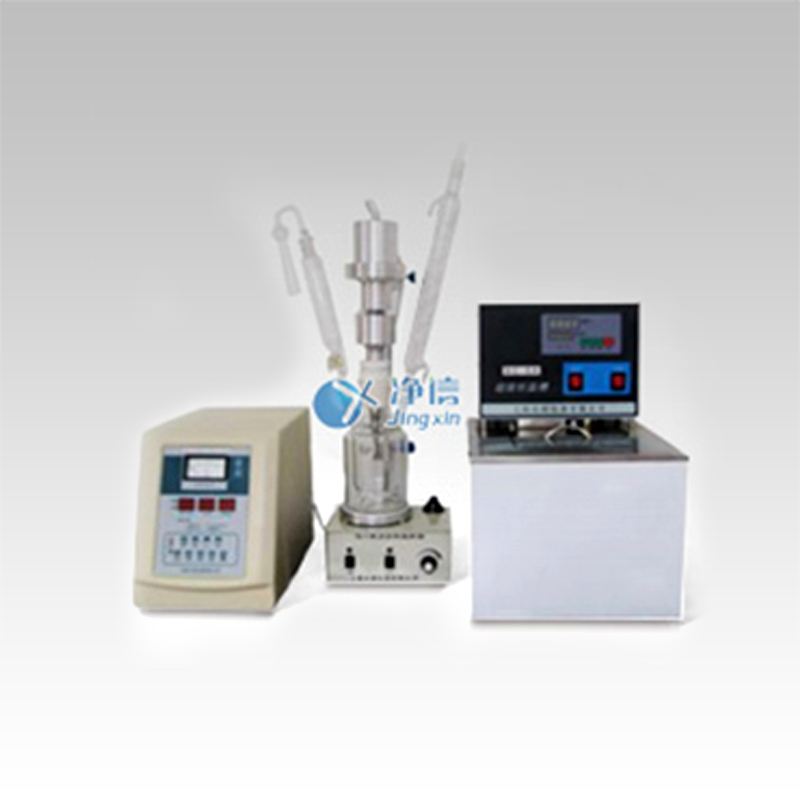

The JX-1000D constant temperature airtight ultrasonic reactor is used for sonochemical reactions, enzymatic reactions, preparation of nanomaterials, crushing, emulsification, homogenization, demulsification, dehydration, separation, extraction, digestion reduction, and Defoaming, petroleum oxidative desulfurization, refractory organic wastewater treatment, oily sludge cleaning and deoiling, remaining biological sludge dehydration, algae removal, algae inhibition, sterilization, cleaning, etc. It is also widely used in chemical engineering, materials engineering, environmental engineering, biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
There are two main categories of ultrasonic generators:
One is the use of mechanical methods to generate ultrasound, including pneumatic (gas whistle) and hydraulic (liquid whistle); the other is to use electromechanical effects to generate ultrasound: ultrasonic cleaner reactor, acoustic horn immersion reaction Reactor and cup reactor.
The energy-concentrated acoustic horn immersed in the ultrasonic reactor is to directly immerse the high-power ultrasonic transducer horn into the reaction liquid, and transfer a large amount of energy directly to the reaction medium, which effectively converts electrical energy into mechanical energy, and can be changed The amplitude of the ultrasonic wave delivered to the probe controls the size of the ultrasonic energy. This type of equipment is commonly used in laboratory extraction and chemical reaction research.
The advantage of the acoustic horn immersion reactor is that the sound intensity can be adjusted and a higher sound intensity can be obtained. The disadvantage is that the temperature of the reaction liquid is difficult to control, and the surface of the probe may be polluted by cavitation corrosion.
The JX-1000D thermostatic fully enclosed ultrasonic reactor produced by our company overcomes these shortcomings with its unique proprietary technology, and also solves the problem of sealing between the horn and the reactor, and is equipped with various chemical reactor accessories. It can realize the isolation of the reaction system atmosphere and the condensation and reflux of the vapor phase. The structure of the temperature-controlled fully enclosed multi-band ultrasonic reactor is also suitable for further construction of a variety of new reactors, such as: ultrasonic internal loop airlift reactor. The ultrasonic airlift internal loop reactor has simple structure, low cost and good effect, and has great application potential in gas-liquid two-phase and gas-liquid-solid three-phase reactions.
The JX-1000D's transducer emits strong ultrasound, and the reactor can also be designed to produce super-focused ultrasonic energy. The product has strong scalability and is a multi-functional ultrasonic treatment of substances. , Multi-purpose instrument.
Features:
1. Fully enclosed structure, a variety of gases can be introduced to participate in the reaction.
2. The ultrasonic horn is immersed, and the treatment effect is good.
3. The ultrasonic power is continuously adjustable, and the power is adjustable from 50 to 1000W.
4. The ultrasonic pulse excitation device is switched independently, the pulse excitation time is adjustable, and the number of pulses is automatically counted and controlled.
5. Titanium metal can be selected for the part in contact with the liquid of the ultrasonic transducer, which is corrosion-resistant.
6. Glass double jacketed reactor, 50~500mL multiple reactors are available.
7. Jacketed reaction volume, cold water or oil bath can be passed to achieve precise temperature control.
8. The temperature sensing element for display and temperature control can be directly immersed in the reaction system.
9. The reactor can be connected to various chemical synthesis device accessories such as reflux condenser, feeding dropping funnel, introducing gas bubbler, vacuum exhaust pipe, etc. Chemical synthesis reaction device kit and trace organic synthesis kit are optional.
10. The horn is connected to the reactor with a special sealed joint, and various accessories are fitted to seal the sleeve of the reactor, and the reactor is completely closed.
11. Super strong magnetic stirring to make the sample fully mixed. (★Optional★)
technical parameter:
Main parameters | Parameter range |
Working frequency | 22±1KHz |
Ultrasonic power: | 50~1000W |
Horn: | Φ10mm |
Single processing capacity: | 50~600ml |
Temperature control range: | (-120~300℃ optional) |
Reaction flask neck: | (can be customized according to requirements) |
Reaction flask form: | standard grinding mouth |
Can be used with JX-2000D silencer | |
Can be used with JX-2000D mixing device | |
JX-W series cooling water circulation device, fast constant temperature | |
